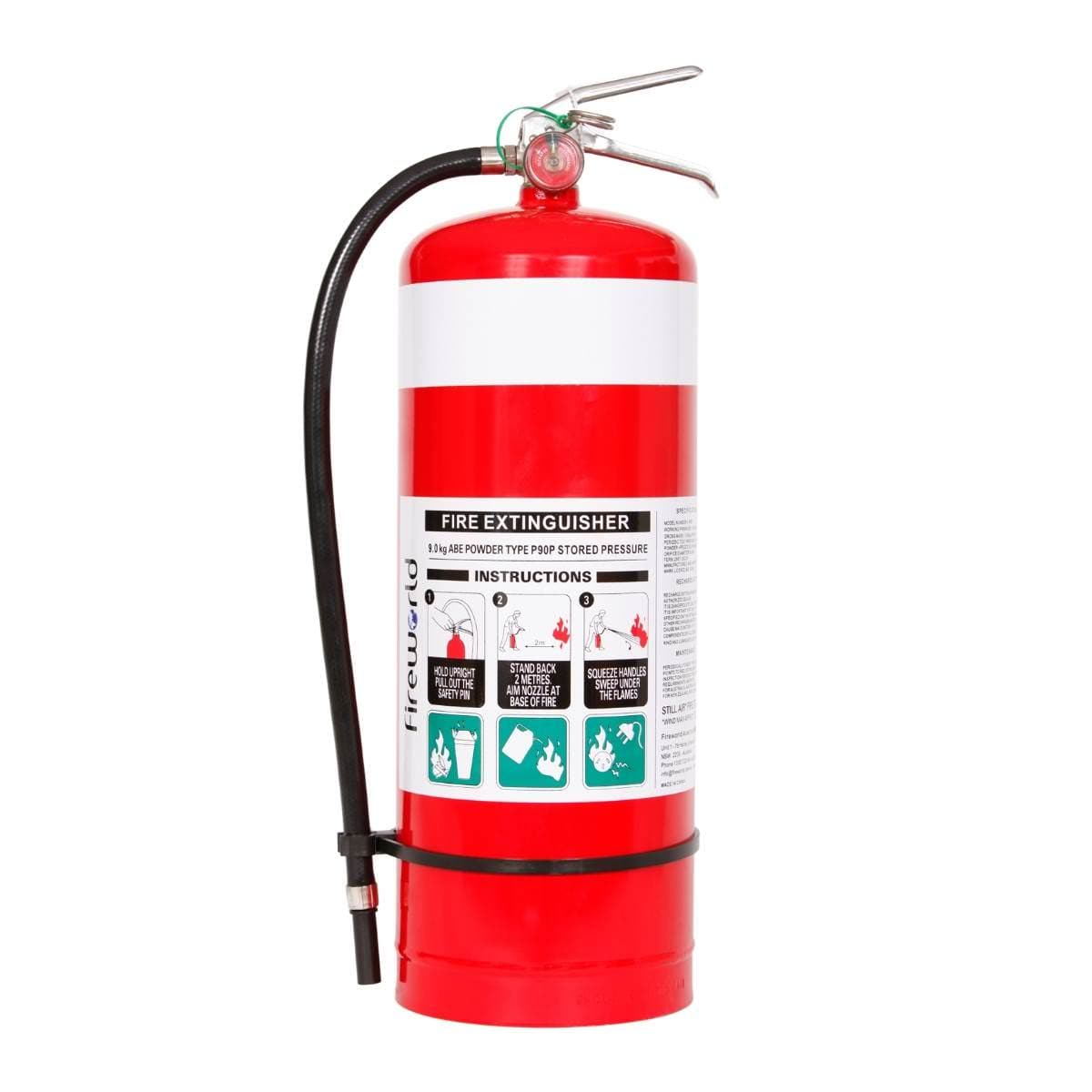

Dry Chemical Powder ABE Fire Extinguisher: China Model

• Deep drawn steel cylinder with welded base and robust skirt.
• Powder coated with UV resistant paint finish, giving extra resistance to standard corrosive environments together with dents and wears associated with normal fire extinguisher use.
• EPDM type UV resistant discharge hose with dust cap.
• Zinc plated brass valve with pressure indicator.
• 316 Stainless steel handles and levers – suitable for aggressive environments.
• Non-Aluminium Hose Ferrules on 4.5kg & 9.0kg required for underground use.
• 316 Stainless steel hose retaining clip and bands on 2.5kg, 4.5kg & 9.0kg models.
• Sturdy solid stainless steel hanging bracket, ideal for aggressive environments.
• A rugged epoxy coated metal vehicle bracket comes with 1.0kg, 2,0kg & 2.5kg models. 2.5kg model comes with wall bracket for internal installation.
• Aluminium inspection tag and ring (to be removed for underground coal mines).
• Fire extinguishers have been fire tested for the use in A, B & E Class fires.
• All fire extinguishers should be serviced to the relevant, current Australian Standard. AS1851 -Maintenance of Fire Protection Systems and Equipment.

Applications

• A Class Fires (paper, wood, textiles)
• B Class Fires (flammable liquid fires such as oils, paints and solvents)
• E Class Fires (energised electrical fires such as switchboards and electrical motors)

1KG - Details

Product Code: PABE10
Fire Rating: 2A10B:E
Operating Pressure: 1500kpa
Discharge Time (approx): 8-11 sec
Dimensions (height x diameter): 340 x 95
Overall Mass (approx): 1.9kg

2.5KG - Details

Product Code: PABE25
Fire Rating: 4A‐40BE
Operating Pressure: 1500kpa
Discharge Time (approx): 13-16 sec
Dimensions (height x diameter): 440 x 135
Overall Mass (approx): 4.6kg

4.5KG - Details

Product Code: PABE45
Fire Rating: 6A60B:E
Operating Pressure: 1500kpa
Discharge Time (approx): 17-20 sec
Dimensions (height x diameter): 510 x 150
Overall Mass (approx): 7.5kg

9KG - Details
