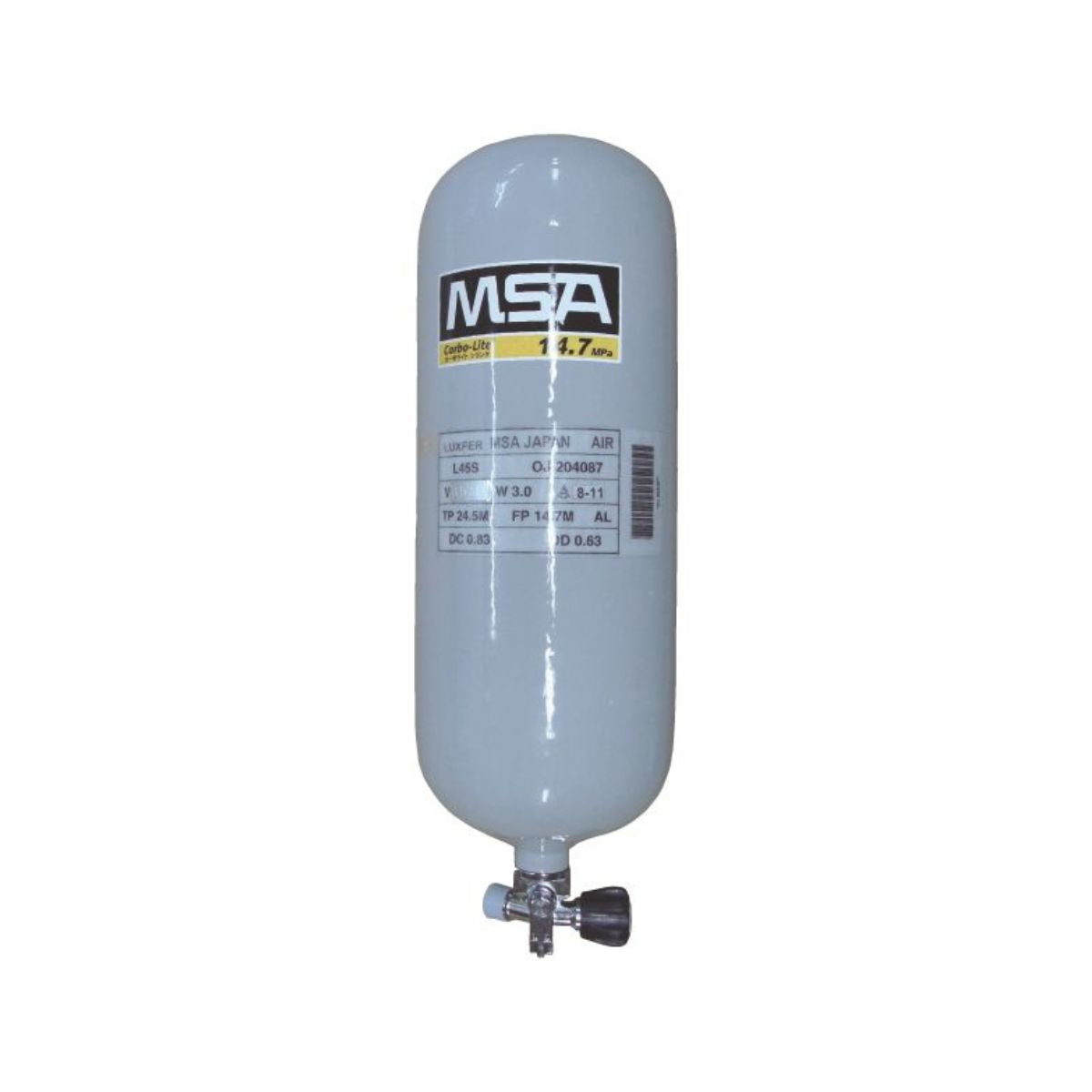

MSA SCBA Carbon Fibre Cylinder & Valve

Carbo-Lite cylinders is high-pressure air container made of carbon FRP. It is the lightweight, laminated structure container made up of the aluminum liner with preservative-treated inner surface, carbon fiber and epoxy resin. And also outer surface is wrapped by glass fiber for enhancing resistance to impact. Available air supply durations of 30, 45 and 60 minutes with / without the pressure gauge.

• Lightweight and robust high-pressure air container made of carbon FRP.
• Available 4 types; CL-30 (14.7MPa for 30 min), CH-30 (29.4MPa for 30 min), CH-45 (29.4MPa for 45 min), CH-60 (29.4MPa for 60 min)
• Available 3 valve types; without a pressure gauge, with a standard pressure gauge and with a built-in pressure gauge
• The valves are also available 2 types of thread angle; 90-degree and 150-degree that enable to choose an optimum one for their own SCBAs
• Approved to the High Pressure Gas Safety Act (Japan)

Applications

• Fire Service

• General Industry

• Oil & Gas

• Utilities

• Mining

PLEASE NOTE, this is a bulky item and may incur additional freight charges. Our team will contact you before shipping if your order incurs such cost.

Please contact our team for a quote if you prefer an estimate prior to placing an order.
